Double Knit Interlock Knitting Machine
High speed multi-purpose double knit machine with a wide range of stitch for a top quality knitting. All of these furnish high productions and easy pattern changing, and high production multi-purpose in rib interlock or sophisticated double knit structure knitting. The design symbolized the yarn corn. Applied curved edge for the worker’s safety. Decreased bobbin tumbling with new bobbin type Efficient work with curved safety door.
KILM-72V, KILM-72AV
HIGH SPEED MULTI-PURPOSE DOUBLE KNIT MACHINE WITH A WIDE RANGE OF STITCH AND TOP QUALITY KNITTING. ALL OF THESE FURNISH HIGH PRODUCTION AND EASY PATTERN CHANGING
| MODEL | DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) |
|---|---|---|---|---|
| KILM-72V | 30" | 18-32 | 72F | 25-30 |
| KILM-72AV | 34" | 18-32 | 82F | 23-27 |
- KILM-72V : 2 track cylinder, 2 track dial cams in 72 feeds range.
- KILM-72AV : 4 track cylinder, 2 track dial cams in 72 feeds range
KILM-84V, KILM-84AV
HIGH PRODUCTION MULTI-PURPOSE IN RIB OR INTERLOCK KNITTING MACHINE WITH THE WIDEST STITCH RANGE AND TOP QUALITY FINISH
| MODEL | DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) |
|---|---|---|---|---|
| KILM-84V | 30" | 18-32 | 84F | 25-30 |
| KILM-84AV | 34" | 18-32 | 90F | 20-25 |
| KILM-84AS | 30" | 18-32 | 84F | 25-30 |
| KILM-108V | 30" | 18-32 | 108F | 20-25 |
- KILM-84V : 2 track cylinder, 2 track dial cams
- KILM-74AV : 4 track cylinder, 2 track dial cams
- KILM-84AS : 4 track cylinder, 2 track dial cams with special cams
- Delayed timing is standard. To change from delayed to synchronized timing, there is no need to exchange the yarn carriers and cams
KILM-AV SERIES (EIGHT-LOCK MACHINE), KILM-AS SERIES
INTERLOCK CIRCULAR KNITTING MACHINE WITH MULTI-FEEDERS FOR HIGH PRODUCTION OF NORMAL-SIZE AND BODY-SIZE YARD GOOD FROM 12 INCH TO 22 INCH IN DIAMETER.
STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements
- AC motor with inverter control unit.
| Cylinder Diameter | 12” - 28" | 30” - 38" |
| AC Motor | 5HP | 7.5HP |
- Dial and cylinder needle detectors
- Tube side creel with double tie
- Positive yarn feeding device
- Venti-Cleaner
- Spreader size ring system
- Oil mist lubricator for needle and cams with dust blower
- Speed of machine is depending upon yarn used, knitting condition, gauge etc. The machine speed can either increased or decreased
- The speed figures on this table are given only as guide
OPTIONAL PARTS
- KYMS(Keumyong Yarn Measuring System)
- High leg type frame for big roll
- Elastin yarn feeding device
- Real time production monitoring system

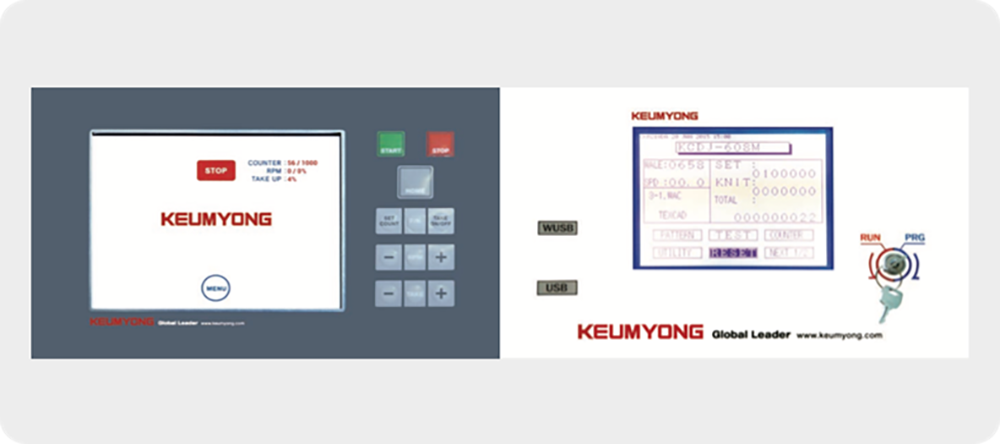

INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

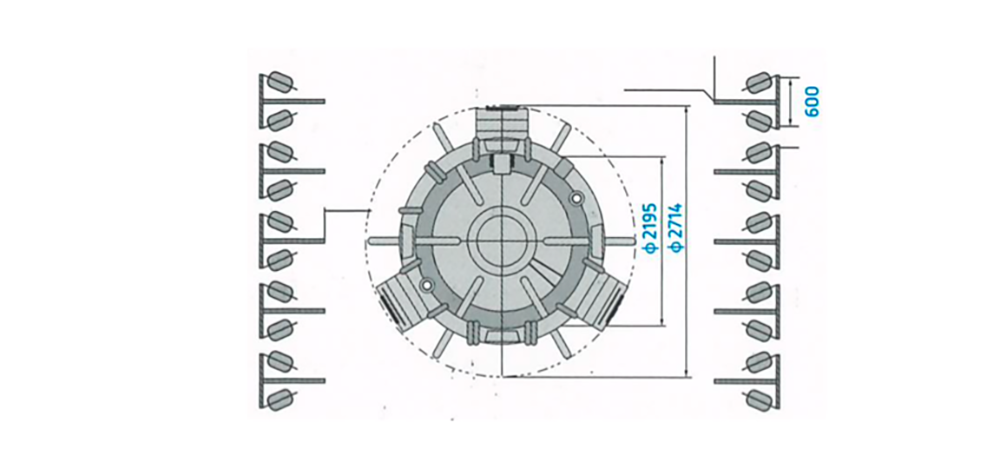

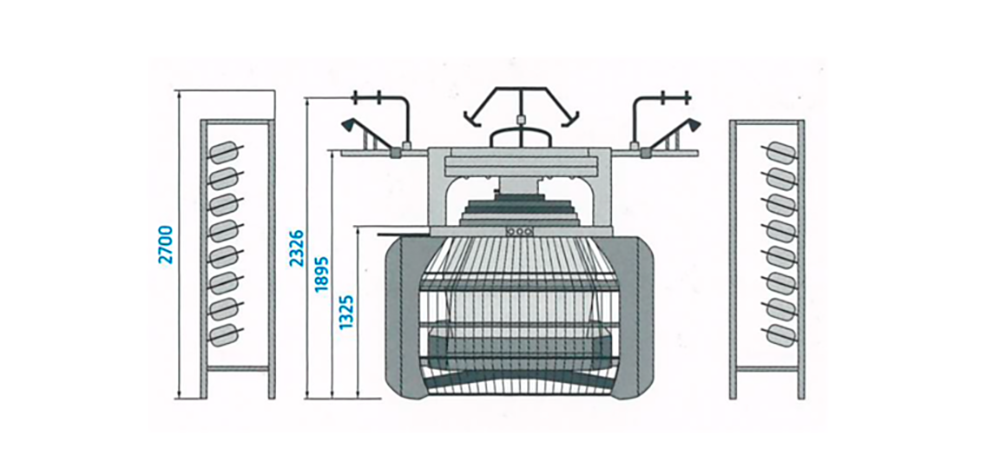

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KILM-84AV | 30” Diameter |
|---|---|
| Approx. Net weight | 2,800kg |
| Approx. Gross weight | 3,000kg |
| Case size (mm) | 2,390x2,250x2,300 (Length Width Height) |
FABRIC VARIETY
