Single Machine
KM-SV
TERRY AND VELOUR KNITTING MACHINE
Has been manufactured a total single knit machine concept.
In one machine can produce three totally different fabric types. 4 track single jersey, terry and velour at increased production speeds. Designed to incorporate all the advantages of the latest high technology for the production of cams, feeders and needle profiles.
In one machine can produce three totally different fabric types. 4 track single jersey, terry and velour at increased production speeds. Designed to incorporate all the advantages of the latest high technology for the production of cams, feeders and needle profiles.
KM-SV FOR TERRY AND VELOUR
Is the superfine quality of the most recent terry and velour machine
KM-SV FOR SINGLE JERSEY
Available 2 or 4 cam tracks and any requested quantities of knit, Tuck and miss cams, which would enable production of a vast range of single jersey and the other single fabric structure
KM-3SV/3.2SV(FOR VELOUR)
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED | SINKER HEIGHT(mm) | |
|---|---|---|---|---|---|
| 24" | 18-26G | 36F38F | 28 | 18-20, N.P.I | 1.5, 1.8, 2.0, 2.5, 3.0, 3.5 |
| 26" | 18-26G | 39F41F | 25 | ||
| 30" | 18-26G | 45F48F | 22 | 22-24, N.P.I | 1.5, 1.8, 2.0, 2.5, 3.0 |
| 32" | 18-26G | 48F51F | 20 | ||
| 34" | 18-26G | 51F54F | 18 | 26-28, N.P.I | 1.5, 1.8, 2.0, 2.5 |
KM-3SV/3.2SV(for single jersey)
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) |
|---|---|---|---|
| 26" | 14-26 | 78F | 40 |
| 30" | 14-26 | 90F | 35 |
| 32" | 14-26 | 96F | 30 |
| 34" | 14-26 | 102F | 30 |
STANDARD SPECIFICATIONS
Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements.
- AC Motor with inverter control unit
- Plating fabrics can be knitted, provided yarn carrier and yarn carrier plates are purchased
- Memminger MPF positive yarn feeding device
- Side creel stand with double tie
- Venti-Cleaner
- Spreader size ring system
OPTIONAL PARTS
- Conversion to single jersey is available by conversion kit(Conversion kit : Cam, yarn carrier, sinker pin, etc.)
- Real time production monitoring system
- KYMS(Keumyong yarn Measuring System)
- Open width take-up device
- High leg frame for big roll

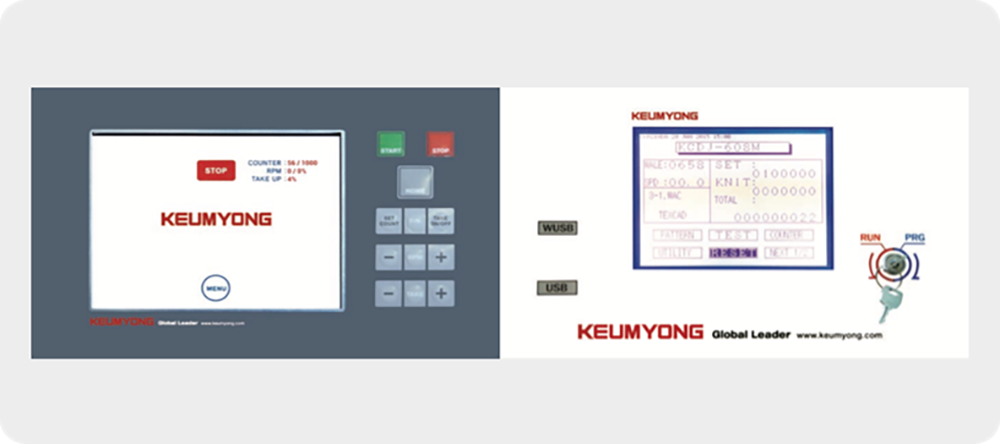

INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

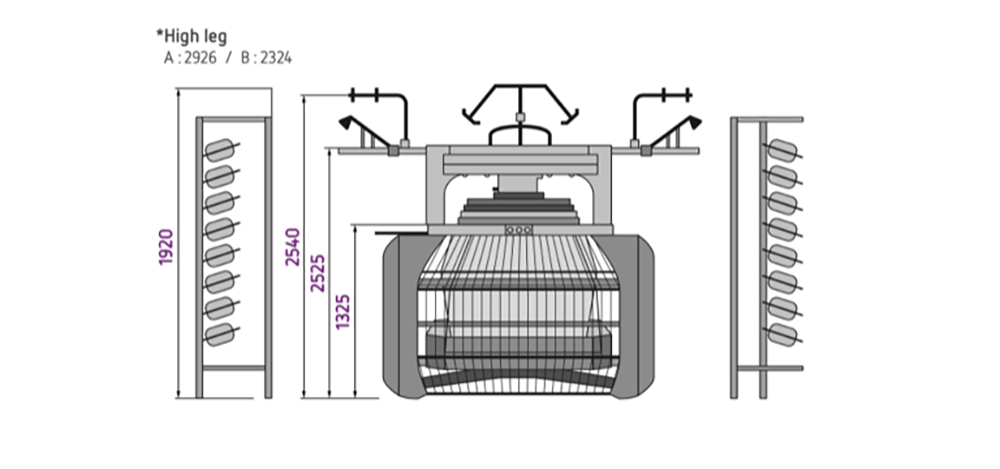

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KM-SV | 30” Diameter |
|---|---|
| Approx. Net weight | 2,410kg |
| Approx. Gross weight | 2,400kg |
| Case size (mm) | 2,280x1,880x2,150 (Length Width Height) |
FABRIC VARIETY
